Polybass Box for any Guitar with single string output (Roland GK, Avalon, Multiac…)

This is a pedal version of the Polysubbass which came with the Paradis Avalon guitars between 1990 and 1995

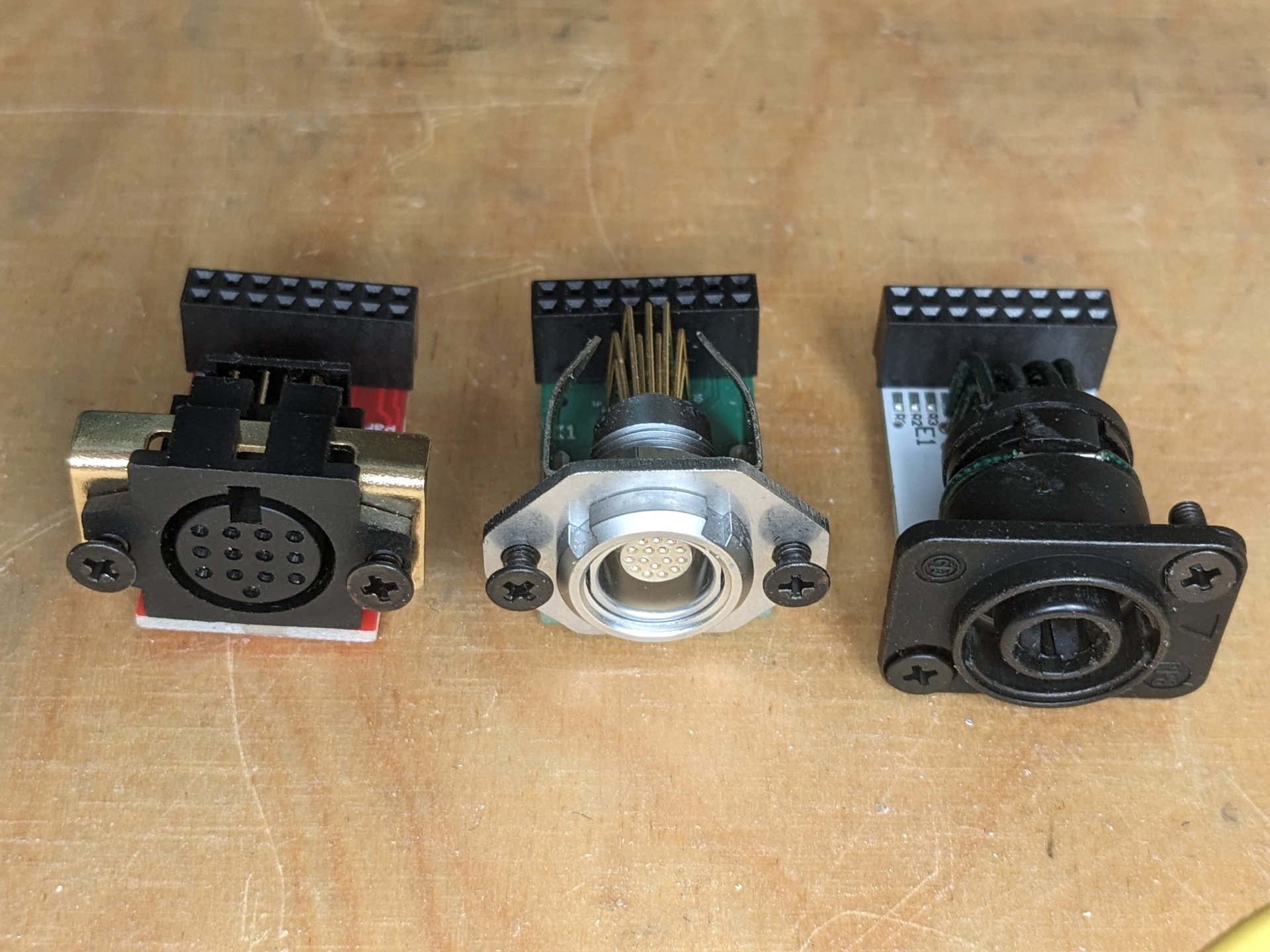

now with universal hex input and output, upgradable from the standard 13pin DIN to the far better LEMO 16pin clone.

it contains

• Polybass effect, controllable with a slider and the button in the lower right corner
• wooDI-M attack smoother like the newer Spuler Paradis guitars. switchable with the button on the left
• bass/treble control
• 13pin DIN or 16pin LEMO input from a guitar with split strings like Godin Multiac or Roland GK
• main 1/4″ jack output for the mixed signal
• auxilary 1/4″ jack  which can be PBass only output or an Auxiliary input (from your mic preamp or other guitar…)
• DC 15V power supply is included
• 13pin DIN or 16pin LEMO output to Roland GK synth or 6Appeal etc, the box can also be supplied from this output.
• GK Synth volume slider, can control any parameter on most connected equipment
• the two buttons can be switched to do the GK functions Up/Dn = S1/S2  (instead of wooDI/PBass)
