PolyPan Box for GK 13pin or HighEnd 16pin guitars

this box not only allows to set each string to a different spot in space, but helps to organize multiple signals from a modern guitar with built in microphone etc.

now that we
now with universal hex input and output, upgradable from the standard 13pin DIN to the far better LEMO 16pin clone.

it contains

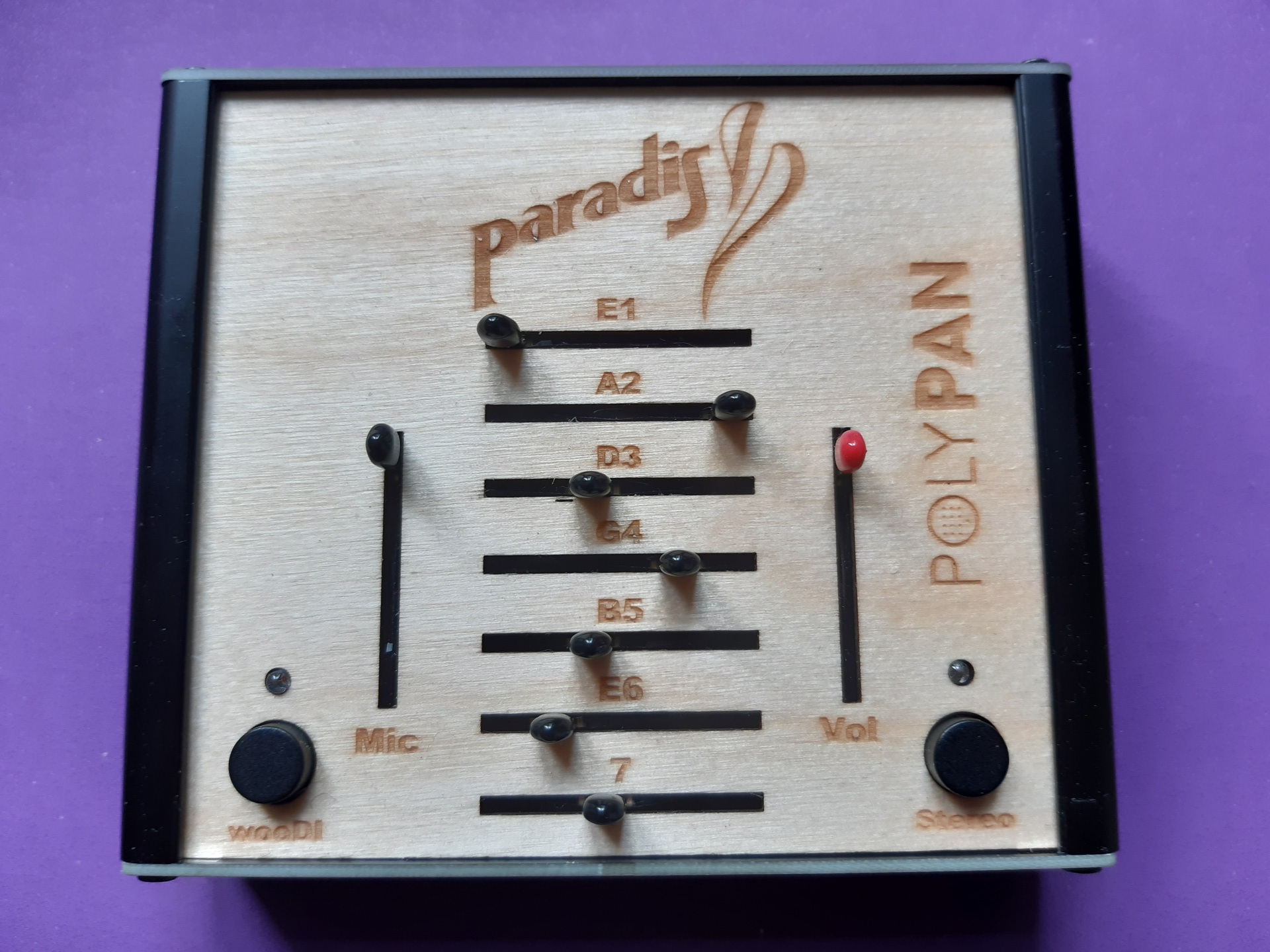

• Pan for each sting, controllable with a slider and the button in the lower right corner
• 7th channel for 7 string guitars or paning additional pickups and effects coming in
• 2 volume sliders: on the left for a standard pickup or microphone, on the right for the stereo mix of the hex pickup
• wooDI-M attack smoother like the newer Spuler Paradis guitars. switchable with the button on the left

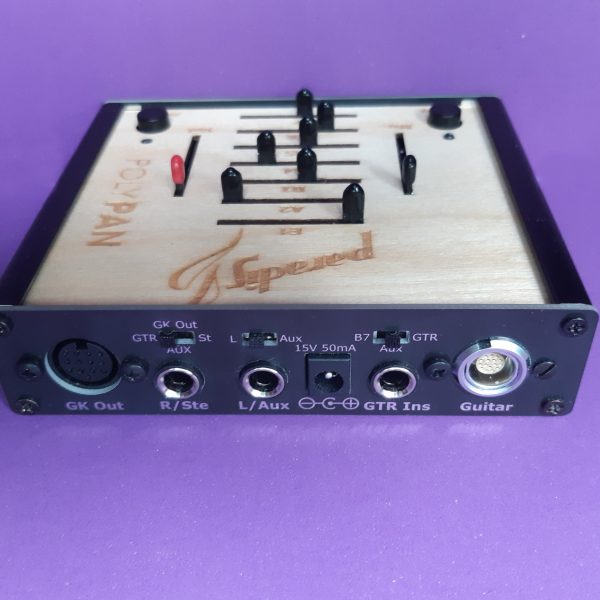

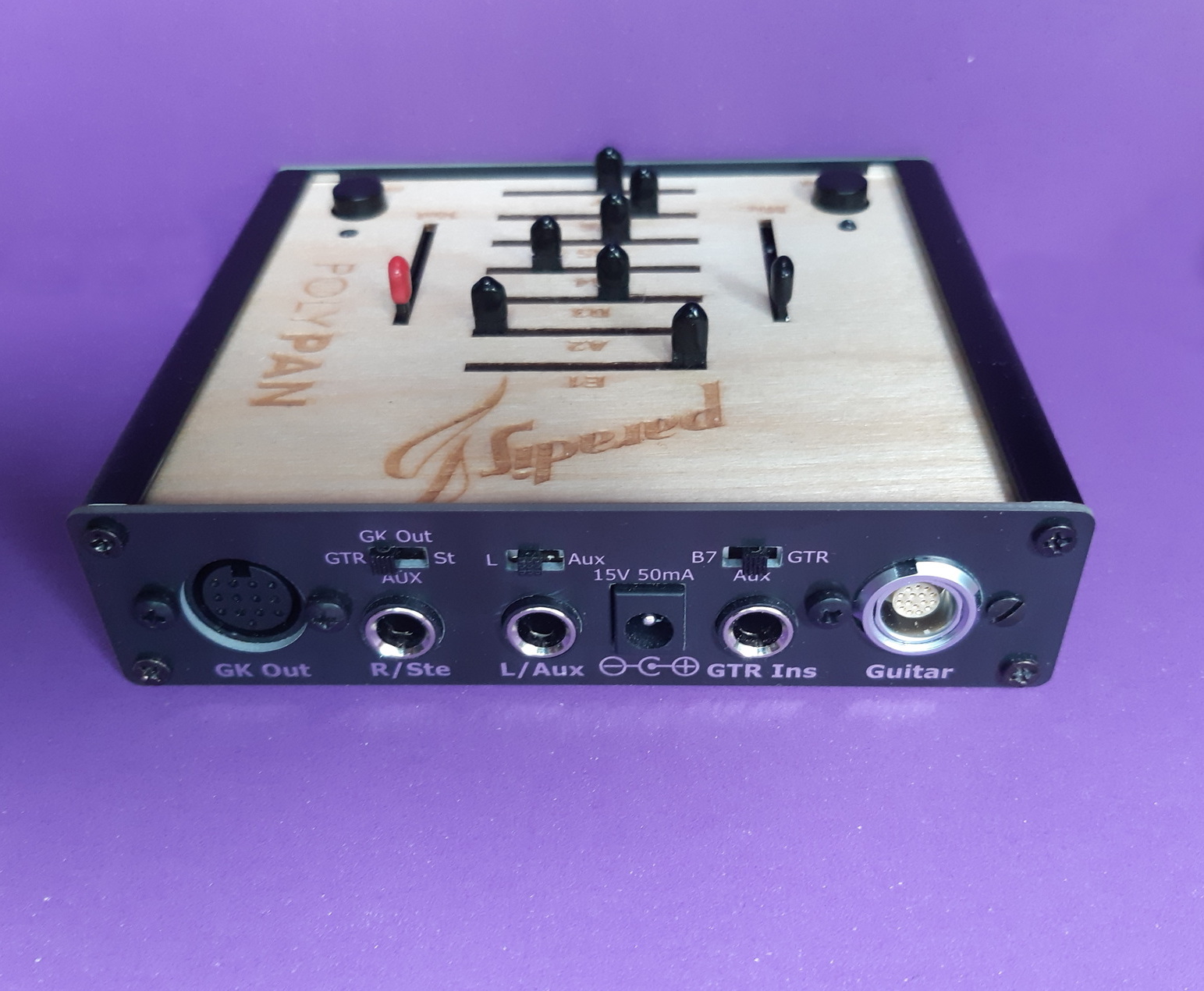

• 13pin DIN or 16pin LEMO input from a guitar with split strings like Godin Multiac or Roland GK
• main 1/4″ jack output for the mixed signal
• 2 auxilary 1/4″ jack  which can be Outputs or Inserts for the GTR and Aux signals
• DC 15V power supply is included
• 13pin DIN or 16pin LEMO output to Roland GK synth or 6Appeal etc, the box can also be supplied from this output.
• the two buttons can be switched to do the GK functions Up/Dn = S1/S2  (instead of wooDI/Mono)
